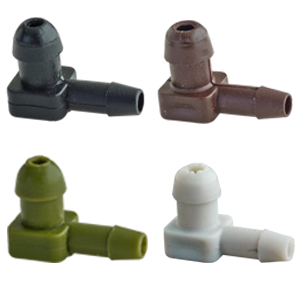

MICRO FLAPPER EMITTER

MICRO FLAPPER EMITTER

SPECIFICATIONS

Products-MF Single Outlet

Flow Rate-1.5 LPH (0.40 GPH)

                     2 LPH (0.50 GPH)

                     3 LPH (0.75 GPH)

                     4 LPH (1.0 GPH)

                     8 LPH (2.0 GPH)

Suggested Filtration : 150 MESH

Maximum Pressure : 50 PSI

Usage-Orchard, Fertigation, Landscape, Open Field, Green House

Micro-Flapper Diaphragm allows for full pressure compensation and automatic purging.

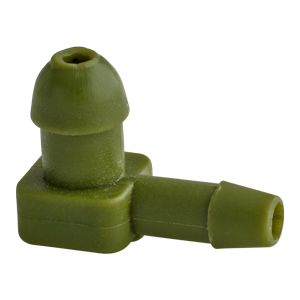

Micro Flapper Emitter
Pressure Compensating / Automatic Purging
The Micro Flapper is fully pressure compensating. The output of each EMITTER is not affected by
reasonable pressure losses due to friction loss in lateral and main line, elevation differences or changes
in pumping pressure. Non-compensating EMITTERS always emit a higher volume of water from the first
EMITTER in line as compared to last one, even on level terrain. This unequal distribution is unacceptable
and unnecessary with the Micro-Flapper.
